WS-3600 Set Includes
the following items: |
|
| |
|
|
| |
|
|
| |
|
|
| |
| The
WS-3600 Base Receiver has the Following Features:
- Large LCD touch screen display activates
with the slightest touch
- DCF-77
time display with manual setting and alarm
- DCF-77
controlled calendar
- Automatically adjusts for daylight saving
time (ON/OFF function too)
- Display of extensive weather data, in all
cases with programmable alarm functions for
certain weather conditions as well as records
of all minimum and maximum values along with
time and date of their recordings
- Indoor and outdoor temperature display in
degrees Fahrenheit or Celsius
- Indoor and outdoor relative humidity displays
- Air pressure reading in inHg or hPa, absolute
or relative
- Detailed display of rainfall data in 1 hour,
24 hours, total since last reset in inch or
mm
- Wind speed in mph, km/h, m/s, knots or Beaufort
- Wind direction display with LCD compass
as well as numerical (e.g. 225°) and abbreviated
characters (e.g. SW)
- Wind chill temperature display
- Dew point temperature display
- Weather forecast display by weather icons
(sunny, cloudy, rainy)
Displays weather forecast history since last
change in conditions
- Weather tendency indicator
- Storm warning alarm
- Bright EL back light
- COM port for easy connection to your PC
- All the weather data from the base receiver
station and up to 1750 sets of weather history
data (with user adjustable measuring intervals)
can be recorded and uploaded to your PC
- Dimensions:
225 x 35 x 155 mm
- Power Consumption:
Base Receiver Station: 3 x IEC LR6 1.5 V batteries
or AC Power: INPUT 240V AC 50HZ
(adapter unit included)
- Specifications:
- Outdoor Temperature Range: -40°C
+ 59.8°C
- Humidity Range: 1% to 99%
|
| |
|
|
| The Base Receiver's
LCD has many sections: |
| |
|
|
|
|
| |
 |
|
Displays radio controlled time &
date with respective alarms |
 |
|
Displays
weather forecasting icons with tendency arrows,
air pressure, pressure history graph with respective
alarms |
 |
|
Displays
indoor temperature and indoor humidity with respective
alarms |
 |
|

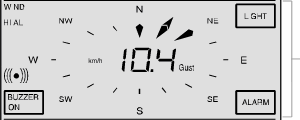

Displays
wind direction, wind speed, backlight ON/OFF,
buzzer ON/OFF, and respective alarms |
 |
|
Displays
rainfall for 1hour, 24 hours, 1 week, and total
rainfall with respective alarms |
 |
|
Displays
outdoor temperature, wind chill, dew point, and
humidity with respective alarms |
 |
|
Displays
different functions & values depending on
which above LCD section has been selected. This
screen shows that you can select and view the
MIN, MAX or ALARM time for Indoor Temperature.
|
|
|
| |
|
|
| |
|
|
Outdoor
Thermometer-Hygrometer Transmitter -
- Measure
outdoor temperature and humidity
- Gather
rain/wind data and transmit to display unit
through cable or 433 MHz TX
- Supply
DC power to wind sensor and rain sensor
- Battery
operated (2 x C) or can access power from
display unit through included cable
- Dimensions:
197 x 89 x 79 mm
Rain
Sensor -
- Connected
by cable to Outdoor Thermo-Hygro Sensor for
rainfall data transmission and power source
(No separate power supply needed.)
- Dimensions:
140 x 70 x 137 mm
Wind
Sensor -
- Measure
wind speed and wind direction (16 directions
possible)
- Connected
by cable to Outdoor Thermo-Hygro Sensor for
wind data transmission and power source (No
separate power supply needed.)
- Dimensions:
60 x 197 x 290 mm
WS-3600U
Free PC Software -
- CD-Rom
included that contains PC-autoinstallation
software to allow the transfer of collected
weather data to PC
|
|
|
| |
|
|
| |
|
|
